»Quadroflex«
Pagoda tents - elegant and spacious at the same time
HALTENT pagoda tents can be set up either as an entire tent landscape or as individual tents.
With its convenient plug-in system and simple assembly, QUADROFLEX is also very popular with professional tent hire companies. Whether as a VIP tent for open-air events, as a tent in the hotel industry or as a catering tent.
Your offer free of charge and without obligation.

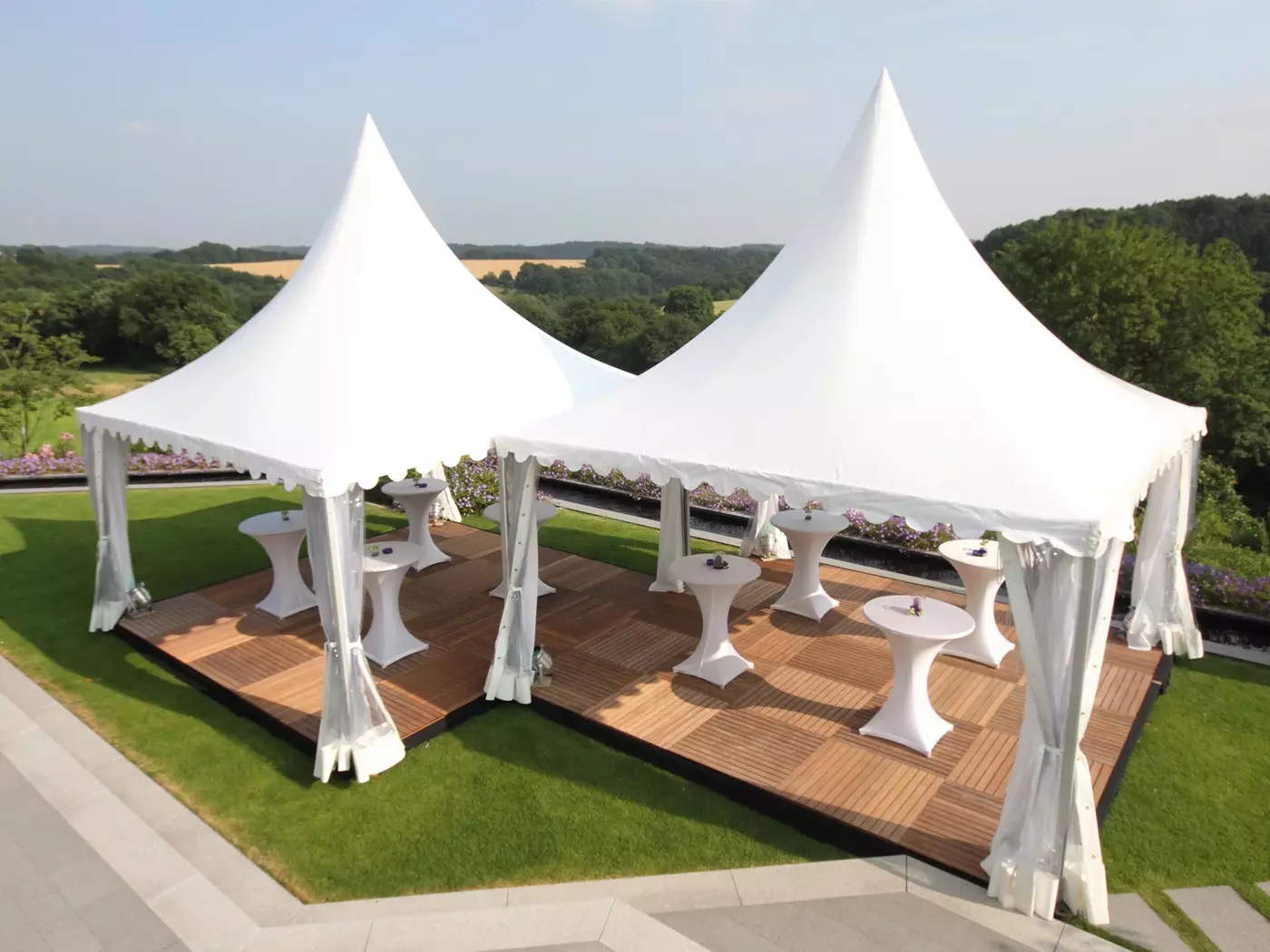

Pagoda tents for tent hire companies and dealers

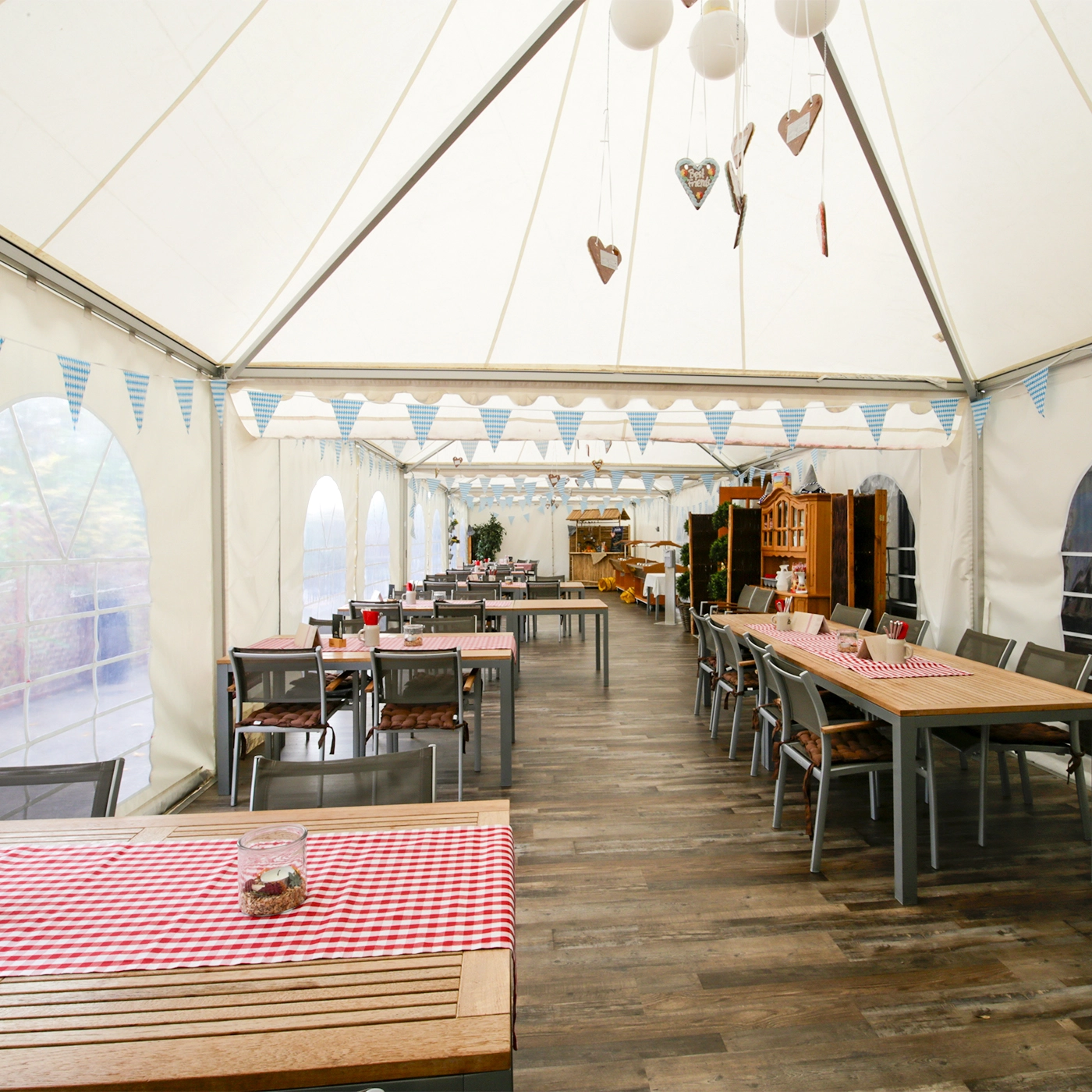

Pagoda tents as catering tents

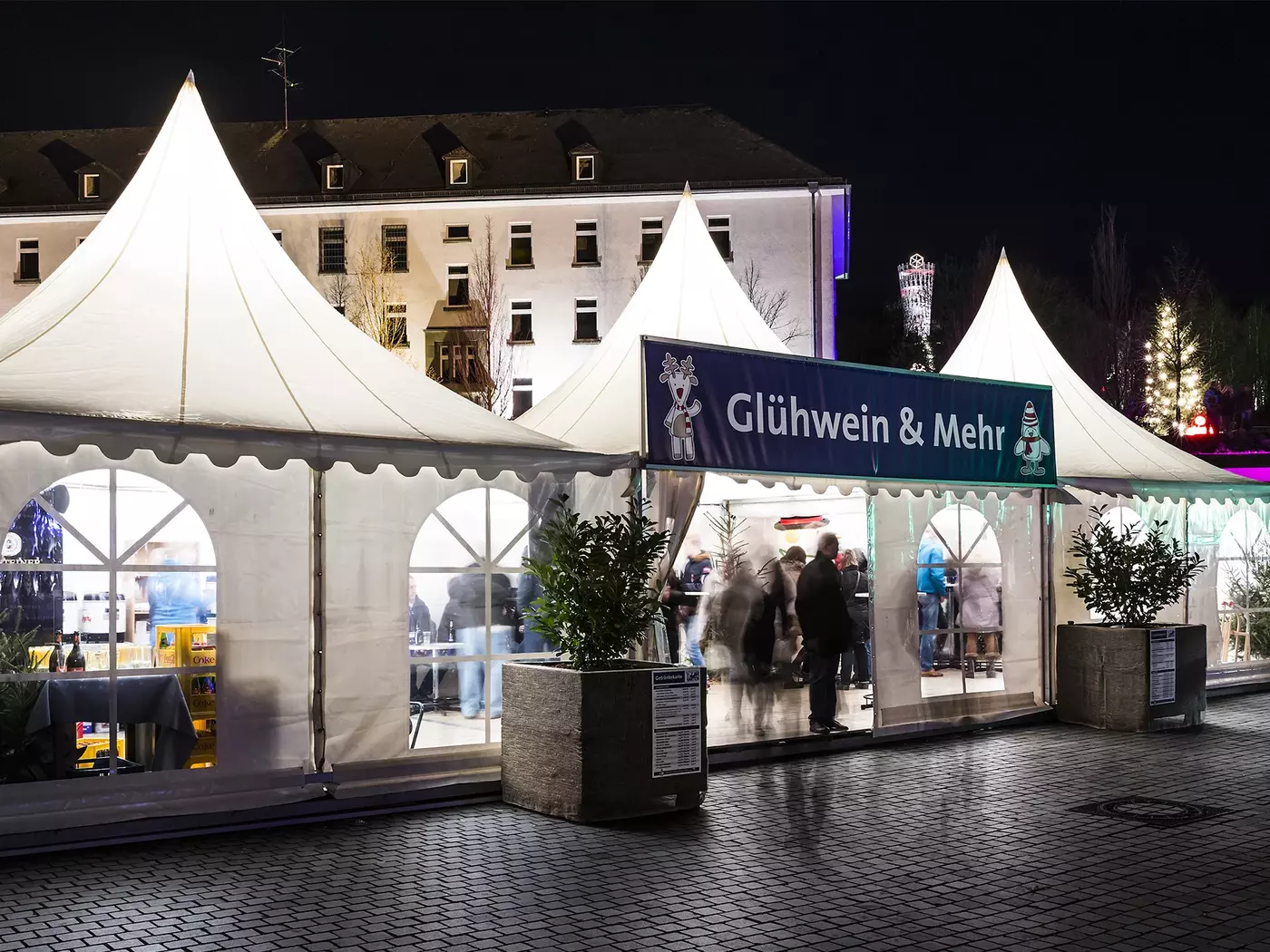

Pagoda tents for tourism

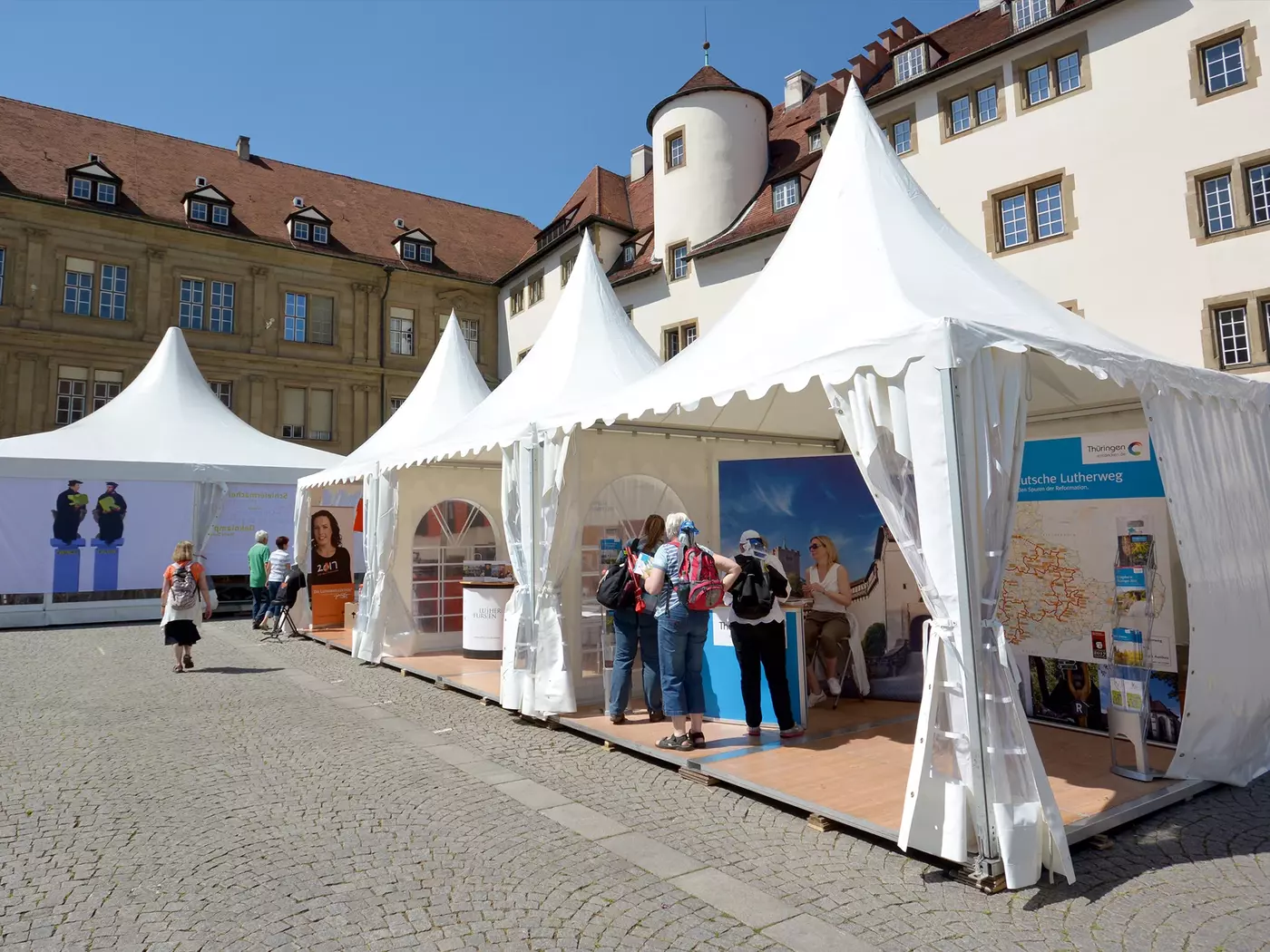

Pagoda tents for tourism

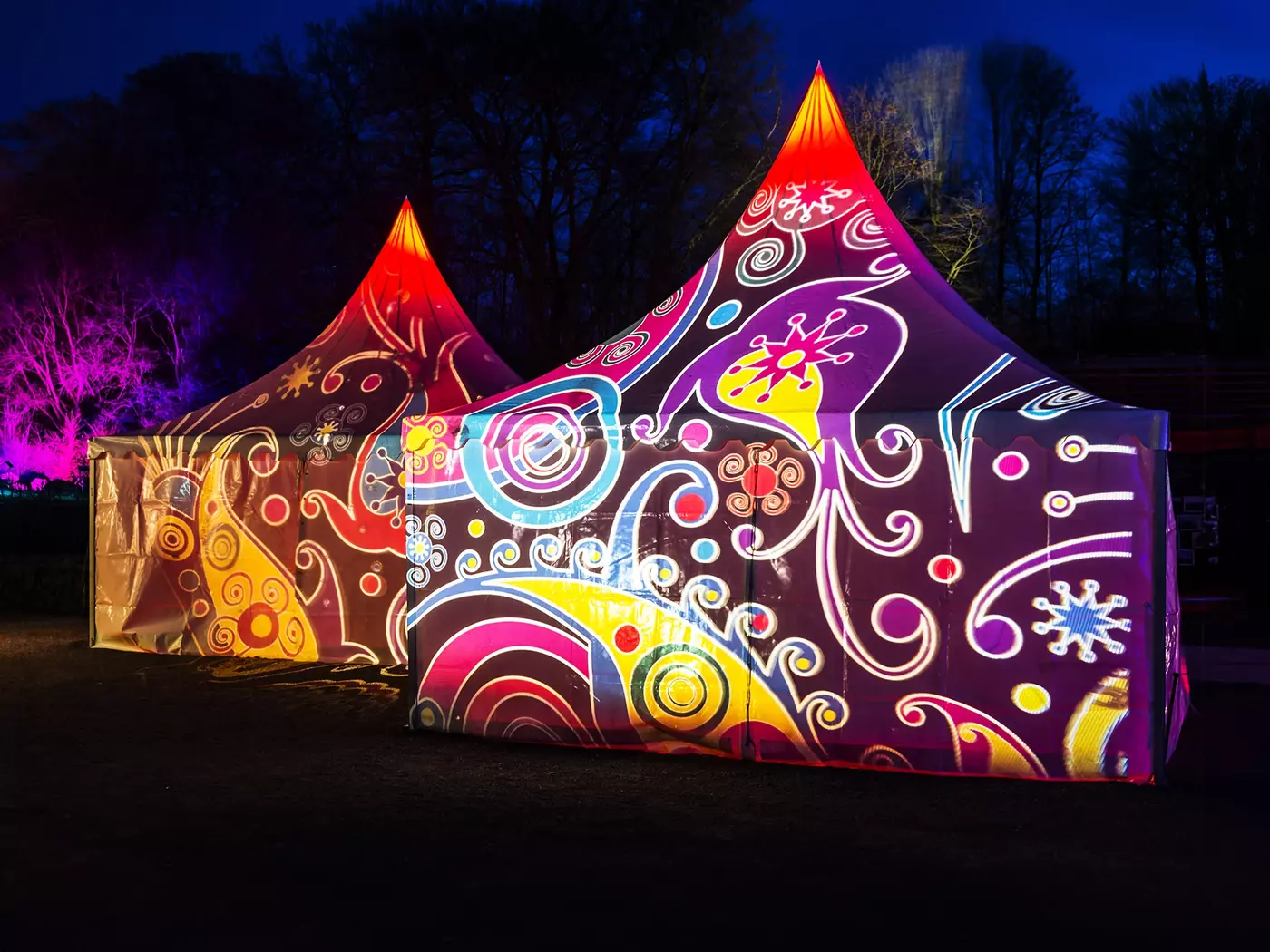

Pagoda tents for event organisers

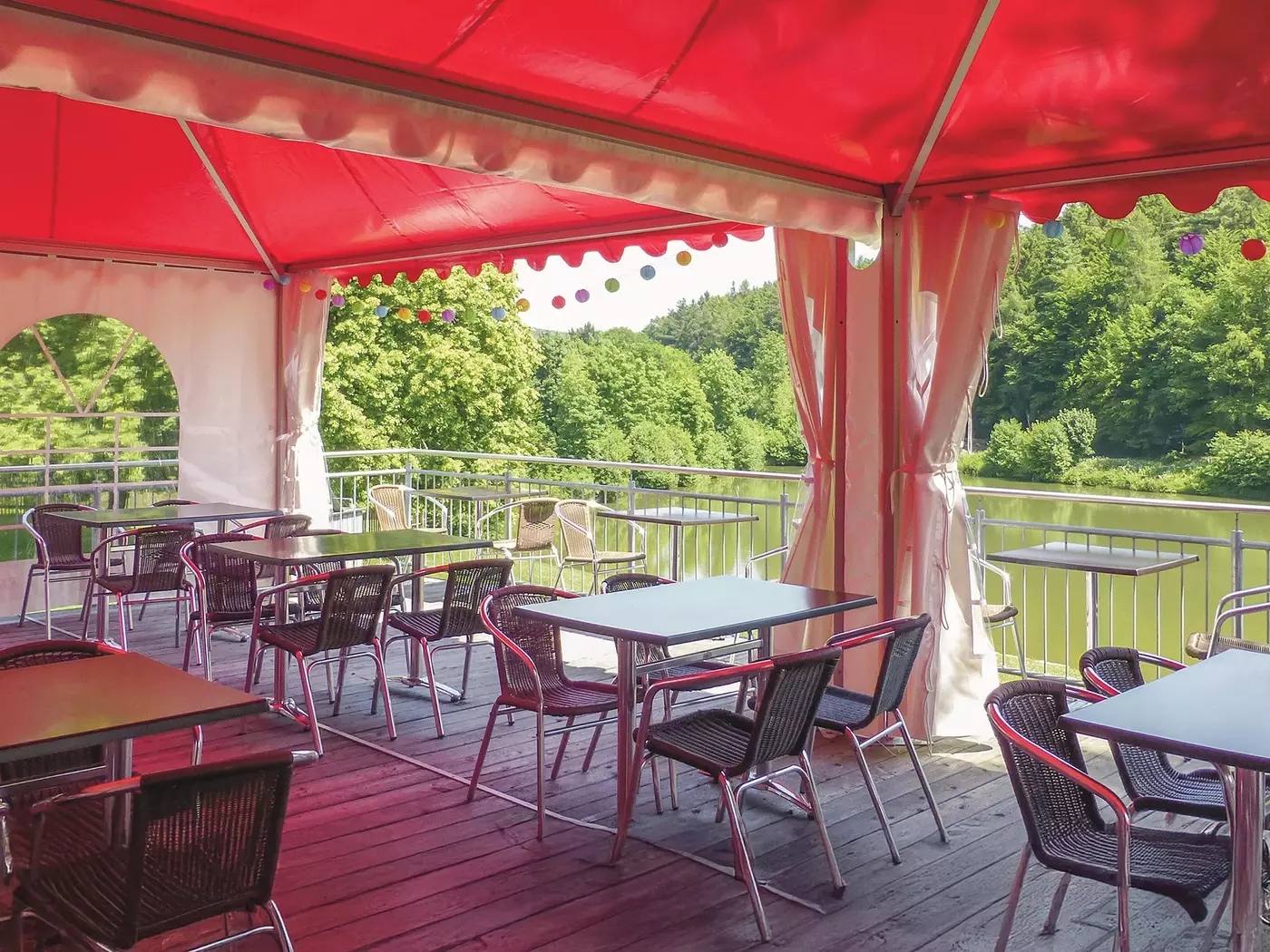

Pagoda tents for the catering and hotel industry
AdvantagesProfessional pagoda tents - direct from the manufacturer
HALTENT pagoda tents are approval safe and stable: both the individual and combined installation of HALTENT professional tents is statically proven and TÜV-tested. The quality and design also speak for themselves. The tents with pointed roofs inspired by Asian pagodas even offer the option of customised design.
Classic sizes for our high-quality professional tents are
Pagoda tent 3.0 x 3.0 m
Pagoda tent 4.0 x 4.0 m
Pagoda tent 5.0 x 5.0 m
Pagoda tent 6.0 x 6.0 m
At HALTENT as a manufacturer you can buy all event tents, whether party tents, large marquees or pagoda tents with floor.
A high-quality pagoda tent from HALTENT is a stable alternative to a classic pavilion or simple folding tent that has proven itself in professional tent hire. Not only in terms of quality, but also visually, pagoda tents at weddings, VIP events or city festivals clearly stand out from simple pavilions and folding tents.
Approval safe.

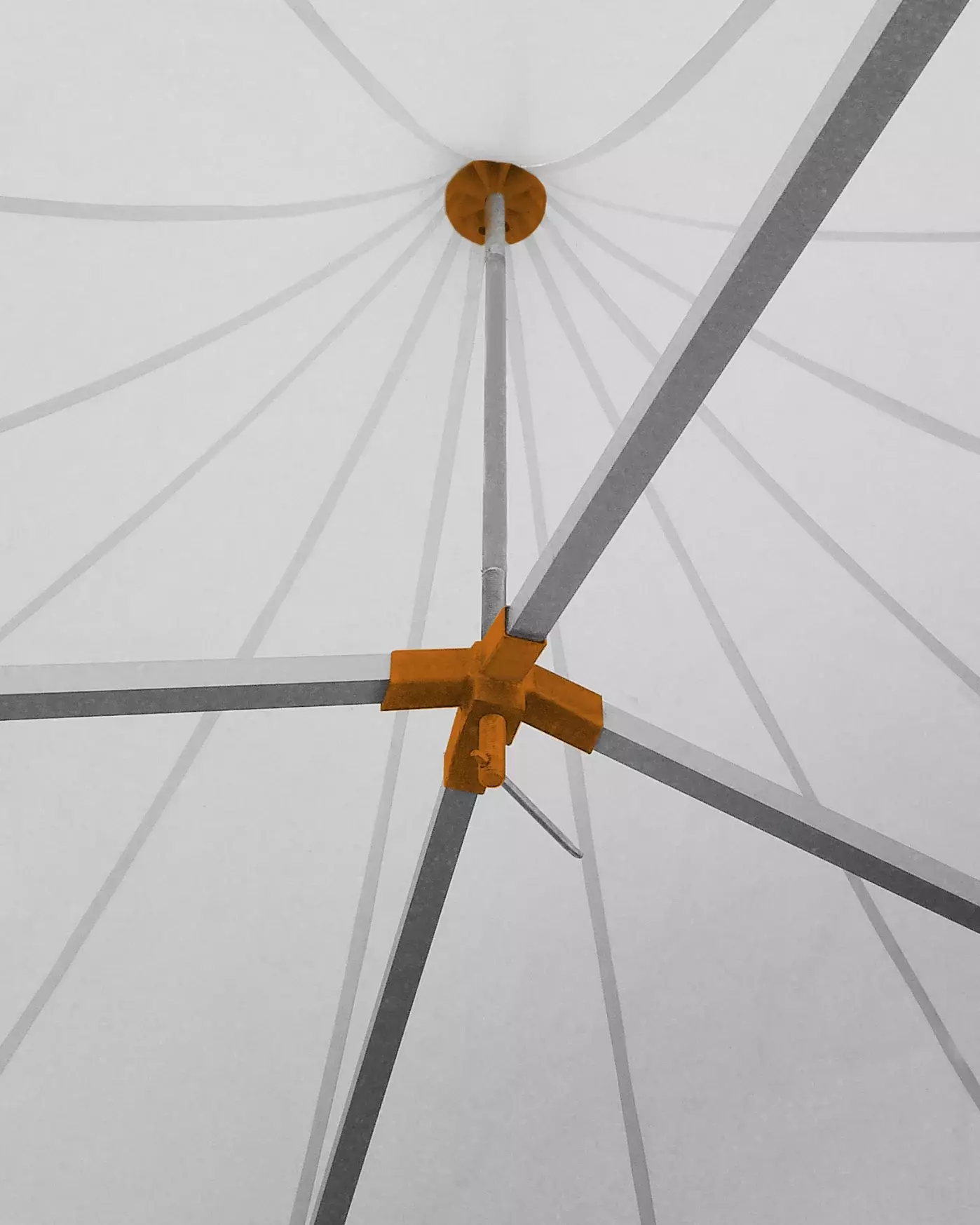

The integrated tensioning device and a stable plastic cone in the tip ensure that the tarpaulin fits perfectly.

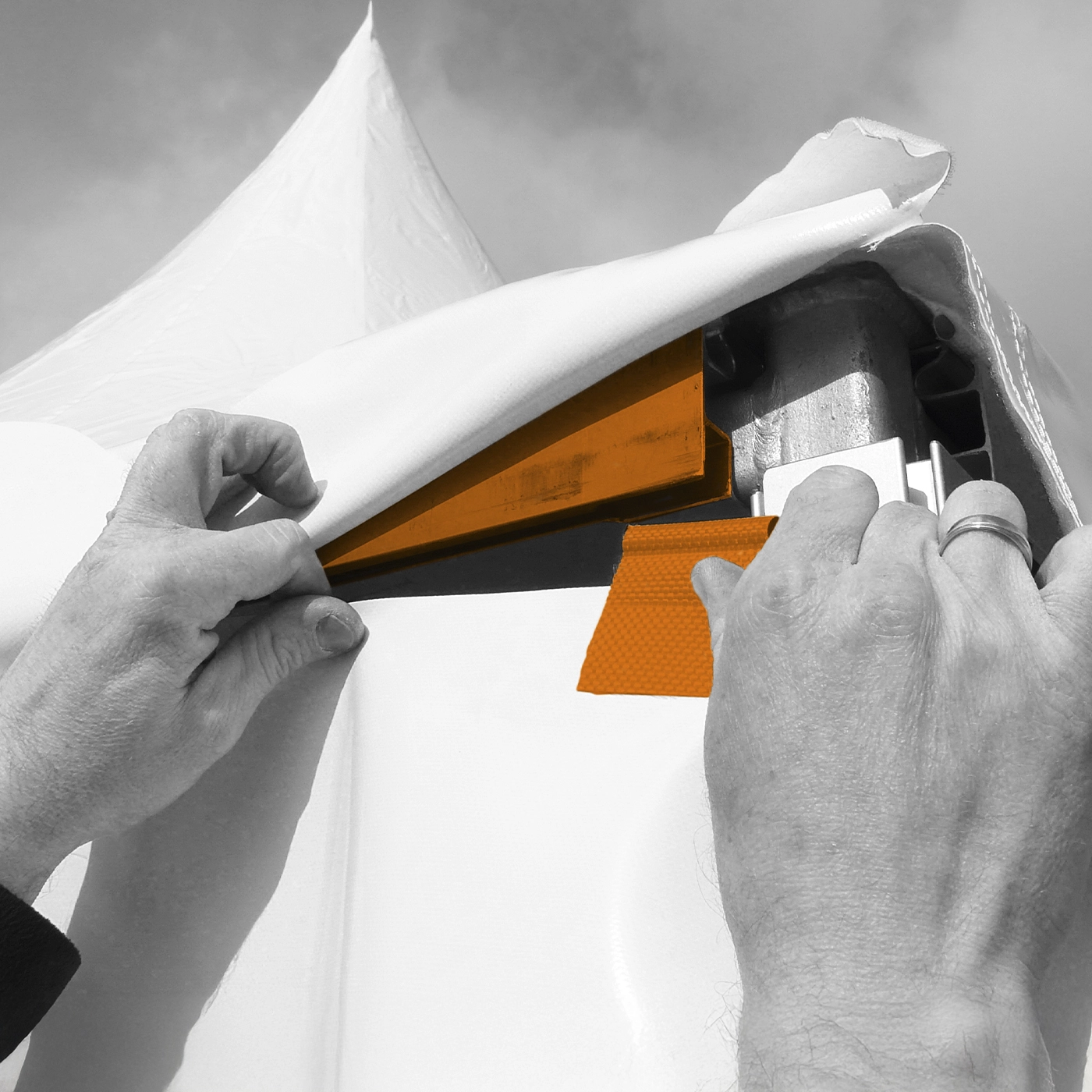

The suspension of the side tarpaulins with keder strips is smooth-running, noiseless and virtually wear-free.

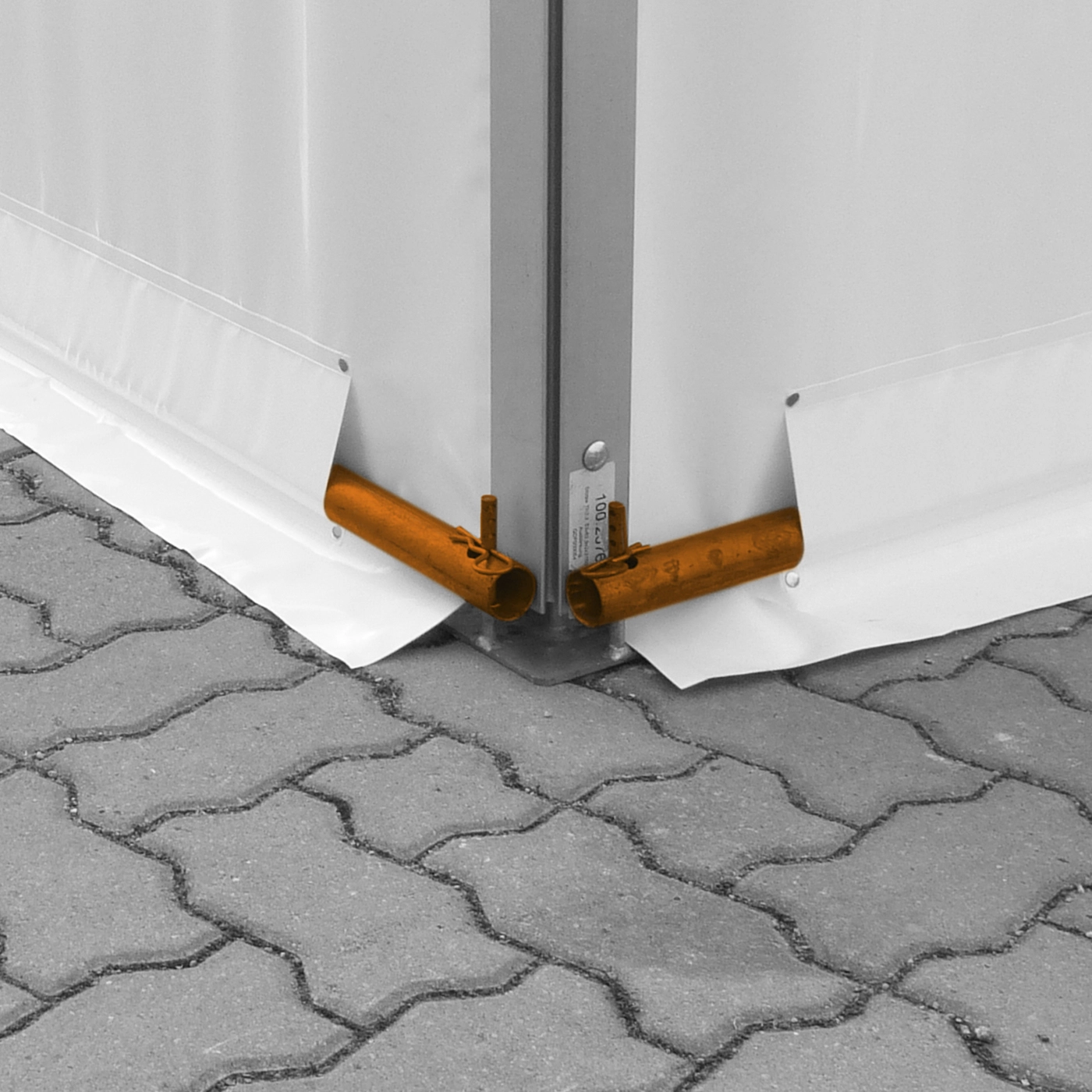

Optionally available foot tubes tighten the side tarpaulins and protect them in windy conditions.

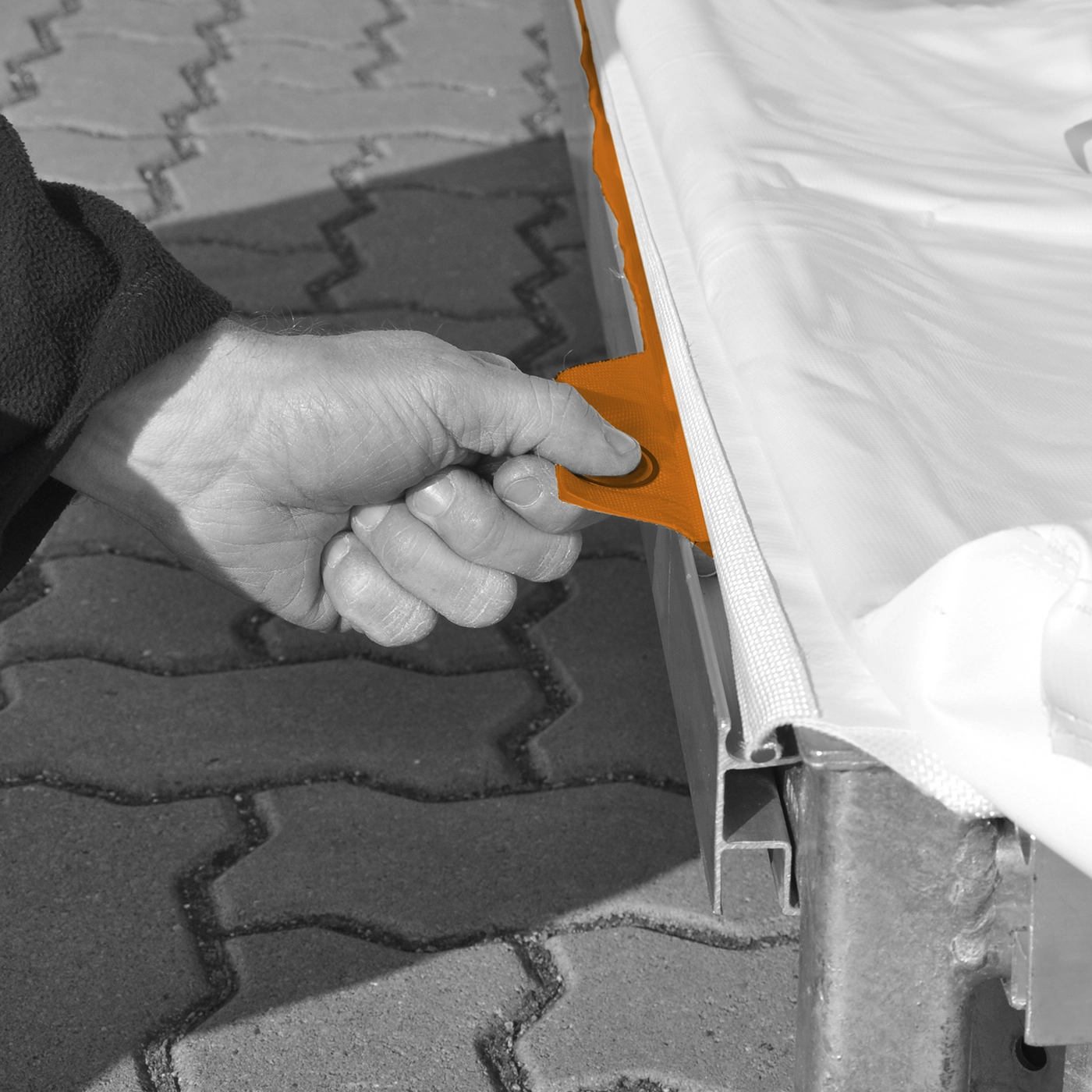

Uncomplicated and smooth fastening of the roof tarpaulin using a "keder attachment system" for fitting the roof tarpaulin before erecting.
Ballast possible.
Extremely stable.
20-year after-sales guarantee.
Technical dataPagoda tent »QUADROFLEX«
| Size | 3.0 x 3.0 m | 4.0 x 4.0 m | 5.0 x 5.0 m | 6.0 x 6.0 m |
|---|---|---|---|---|
| Side height (SH) | 2.2 m or 2.5 m | |||
| Total height with SH = 2.2 m | 3.9 m | 5.0 m | 5.3 m | 5.5 m |
| Total height with SH = 2.5 m | 4.2 m | 5.3 m | 5.6 m | 5.9 m |
| Tarpaulin material | Fabric tarpaulin, PU-coated on both sides, approx. 650 g/m². High-gloss lacquered, waterproof and flame-retardant in accordance with DIN 4102-1:B1. High tensile strength, UV-resistant and fungicidal treatment to prevent mould growth. | |||
| Scaffolding material | Main profile made from anodised aluminium keder profile 63 x 63 x 2 mm, steel parts corrosion resistant by hot-dip galvanising. | |||
| Static calculation | DIN EN 13782, optionally without statics | without | ||
FAQFrequently asked questions about pagoda tents
If pagoda tents are erected as a spatial unit, i.e. directly next to each other, possibly with an intermediate gutter and a continuous floor, this is referred to as a composite. This installation case must be statically verified. An individual structural analysis for each pagoda tent is no longer sufficient. HALTENT pagoda tents are made for professionals and have this verification.
The heavy fabric tarpaulins used with approx. 650 g/m² are extremely robust and have proven themselves in continuous professional use for decades. Depending on the weather conditions and stress, a service life of many years can be expected. Should a tarpaulin be damaged in the rough and tumble of everyday work, it can easily be repaired on site, even during the event, or simply replaced.
